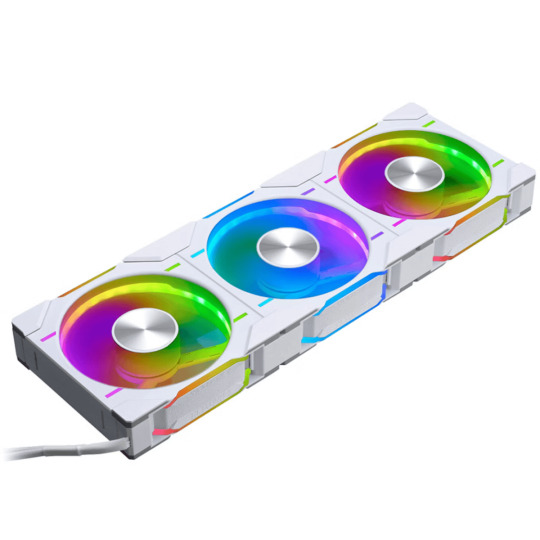

Phanteks D30 120mm DRGB PWM Triple Fan Pack - White

Fierce PC code

1005929

MPN

PH-F120D30_DRGB_PWMWT01_3P

Brand: Phanteks
Fan Diameter: 120mm
Connectors: 4-pin PWM, 3-pin JST
Fan Speed: 2000 RPM
Fan Bearing: Fluid Dynamic Bearing
Fan Blade Direction: Standard

Quantity

Only 4 left!

Next Day Delivery

Order before 2PM

D30-120

Premium D-RGB performance fan

The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.

The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.

Regular & Reverse Models

D30 REGULAR
Air moves from front to rear.
D30 REVERSED
Air moves from rear to front.

Clean look in both positions

Clean look with regular and reversed models combined.
Hub spokes blocked view with only regular models.

Link Together as One

Connect up to four D30 fans together with the bridge connectors.
Hide the fan screws with the screw covers for a super-clean look.
Standard PWM fan header to control directly from the motherboard.

30 mm of Performance

Increased thickness improves noise-normalized performance.
Designed to excel on radiators and mesh / dust filters.

D-RGB All the Way

The integrated D-RGB lighting is visible from all sides of the D30 frame.
The blades reflect the light coming from the HALOS lighting ring for a smooth lighting effect.
Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.

Performance
Fan connector	4-pin
Rotational speed (min)	250 RPM
Rotational speed (max)	2000 RPM
Noise level (high speed)	30.2 dB
Fan thickness	3 cm
Type	Fan
Fan diameter	12 cm
Maximum airflow	64.3 cfm
Maximum air pressure	3.01 mmH2O
Quantity per pack	3 pc(s)
Number of fan blades	7
Fan's mean time to failure (MTTF)	50000 h
Design
Fan connector	4-pin
Illumination colour	Multi
Product colour	White
Cable length	700 m
Illumination LED	Yes
Number of fan blades	7
Fan controller	Yes
LED connector type	3-pin
Technical details
Noise level (high speed)	30.2 dB
Fan thickness	3 cm
Type	Fan
Fan diameter	12 cm
Maximum airflow	64.3 cfm
Maximum air pressure	3.01 mmH2O
Cable length	700 m
Fan connector	4-pin
Illumination LED	Yes
Warranty period	3 year(s)
Ports & interfaces
Fan connector	4-pin
Power
Voltage	12 V
Maximum current	0.45 A
LED voltage	5 V
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 30 mm
Fan weight	300 g
Fan thickness	3 cm
Cable length	700 m
Indication
Illumination colour	Multi
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Number of screws	24
Package type	Box
Mounting kit	Yes
RGB controller included	Yes
Installation instruction	Yes
Other features
LED voltage	5 V
