Tecware VXR Dual Chamber PC Case with 9 x Orbis F3 Fans
- PC Case Manufacturer: Tecware
- Max Supported Motherboard Size: ATX
- SSD / HDD Bays: x2 3.5", x2 2.5"
- Max CPU Cooler Height: 140mm
- Max GPU Length: 385mm
- Dimentions (mm) : L: 405mm, W: 255 H: 435mm
- Radiator Compatibility: 120mm, 240mm, 360mm



The VXR is not your usual everyday case. The corner tempered window strikes you at first glance. But It's also equipped with loads of features.
There are multiple airflow configurations that can be done with the VXR. With 3x 120mm fan mounts on the Top panel, Bottom panel and beside the Motherboard, you can customize your rig's airflow. All sides capable of mounting up to 240mm radiators and 360mm for the side, for liquid cooling options.
2 USB 3.0 and 2.0 plugs are provided on top along with audio jacks and power button. All fan mounts have removable dust filters including the PSU intake. It includes a removable hard drive bay along with 2 variable mount SSD plates which you can install at the rear, bottom or even on the top panel.
Cable management is more than enough thanks to the dual vertical chamber design of the VXR.
Truly an enjoyable build. Step back and enjoy the view.
*The included Tecware Orbis F3 Fans & Control Hub will not be pre-installed in the PC case and will be included in their seperate boxes.

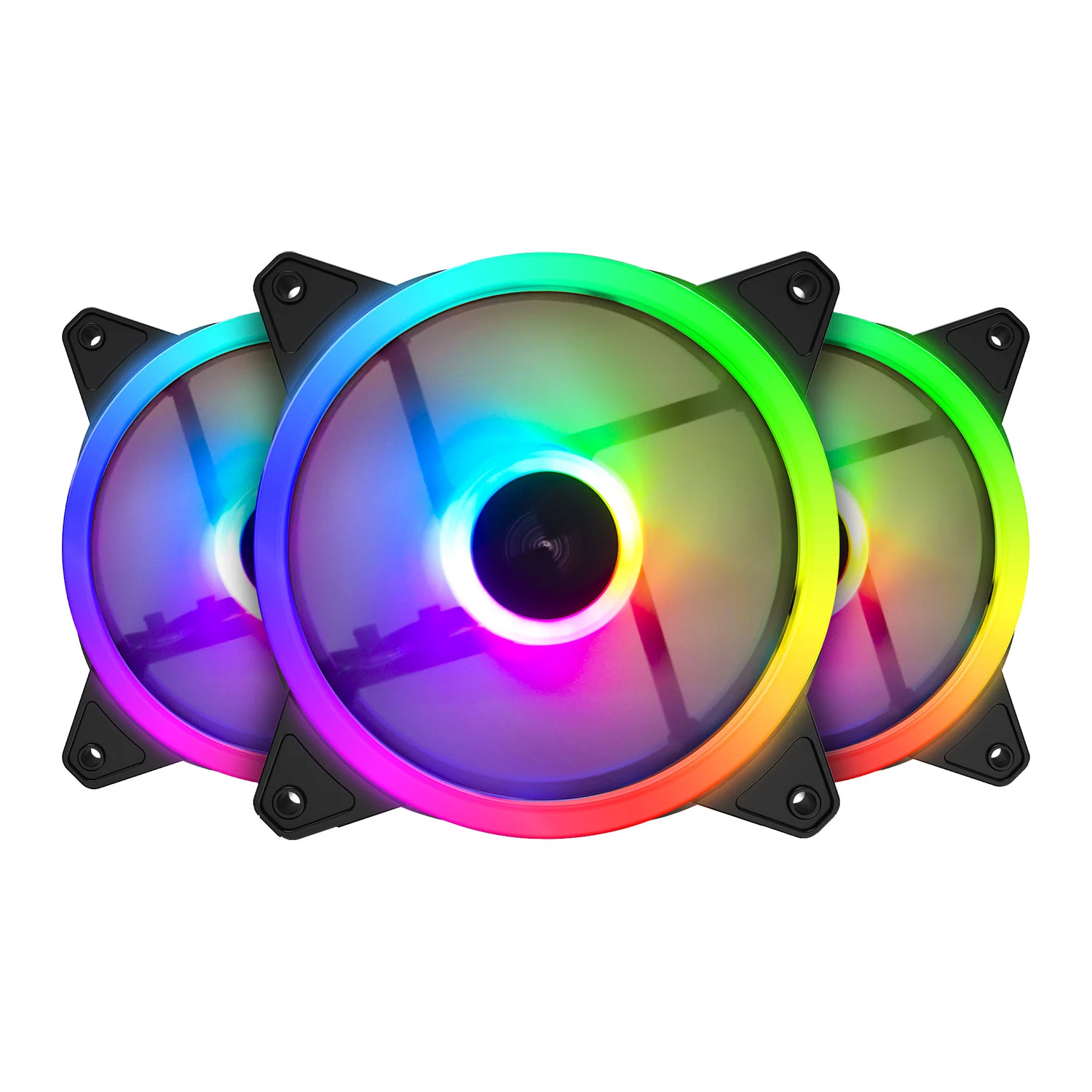

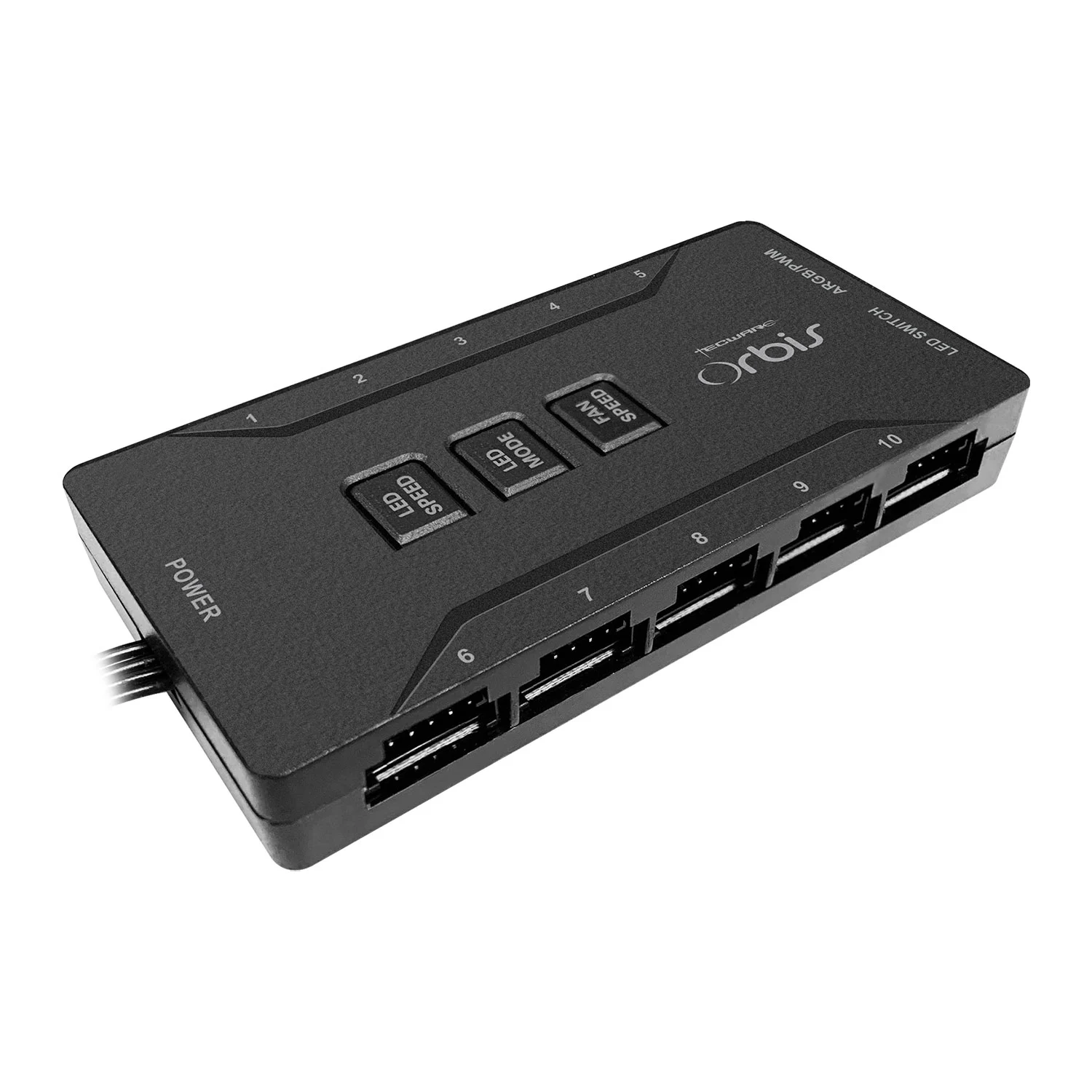

Orbis Controller Hub
When not synced with motherboard software, the fans offer up to 62 different lighting modes that can be toggled via RF Remote or case LED button.
Addressable RGB Sync
Compatible with ASUS/ASROCK/GIGABYTE/MSI motherboards via 3-pin 5V ARGB header.
PWM Fan Speed Control
Orbis fans are synchronised at the same speed via PWM sync. Variable fan speeds can be toggled via RF remote when not synced.
Features
• Supports up to 10 Orbis Fans.
• Hub powered by 4-pin SATA Connector.
• Hydro-bearing.
• 900-1500 ±10% RPM.
I/O
I/O Super speed USB 3.0 x 2
HD Audio + USB 2.0 x2
BAYS
2x 3.5” bay
2x 2.5” bay + 2x 2.5" variable
8x PCI Expansion Slots

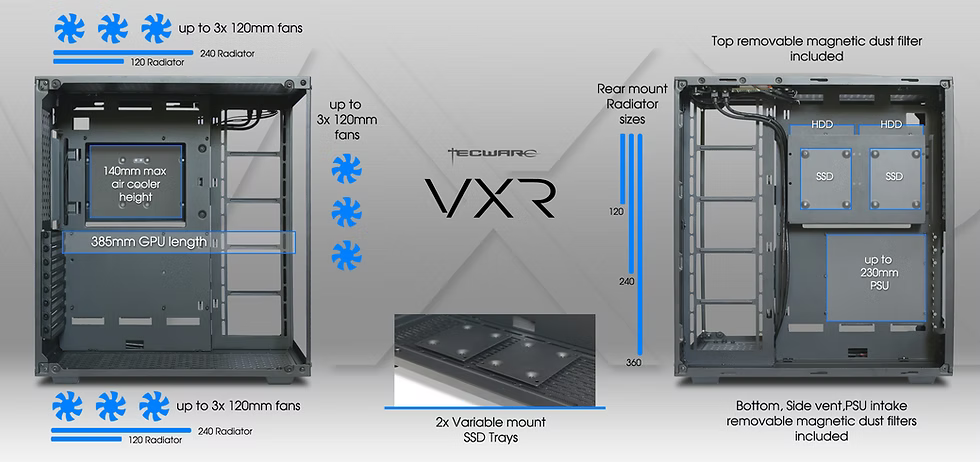

FANS
Top 3x 120mm
Bottom 3x 120mm
M/B Side 3x120mm
SUPPORT AND CLEARANCE
385mm Max GPU Length
140mm Max GPU Width
140mm Max CPU Cooler
230mm Max PSU length
Cable Management
ITX, mATX, ATX motherboard
RADIATOR CLEARANCE
Top: 120 / 240mm
Bottom: 120 / 240mm
Side: 120 / 240 / 360mm
OTHERS
Black case wires, PSU filter
Top / Bottom / Side dust filters
Dual sided tempered glass
SIZE
Dimensions : L 405 W 255 H 435mm 7.5Kg
