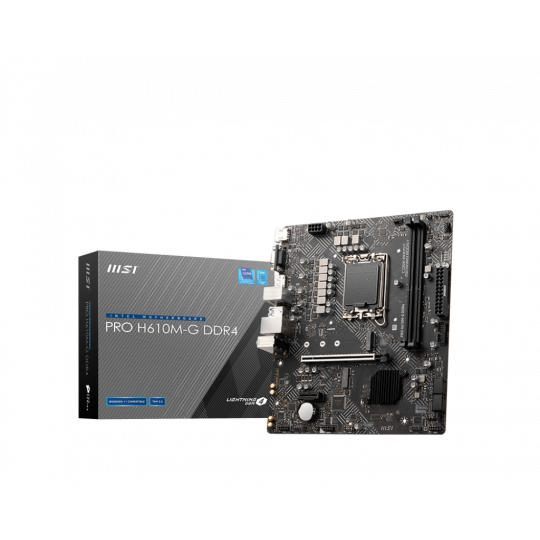

MSI PRO H610M-G DDR4 Motherboard
Fierce PC code
1005197
MPN
PRO H610M-G DDR4
- Socket: Intel LGA1700
- Chipset: H610
- Form Factor: mATX
- DIMM Slots: x2 DDR4
- M.2 Slots: x1
- On-board Wi-Fi: Yes
£59.95
Was
In stock
PRO H610M-G DDR4
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Processor
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700
- Please go to www.msi.com to get the newest support status as new processors are released.
Chipset
Intel® H610 Chipset
Memory
- 2x DDR4 memory slots, support up to 64GB1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
- 1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot
- Supports PCIe 3.0 x1
- 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
Onboard Graphics
- 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2
- 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1
- x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
SATA Ports
- 4x SATA 6Gb/s ports1
- * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD Slot
- 1x M.2 slot (Key M, from chipset)1
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB
Intel® H610 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Audio
Realtek® ALC892/ ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I219V 1Gbps LAN controller
Power Connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
Fan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Serial port connector
Jumpers
- 1x Clear CMOS jumper
LED Features
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
Back panel ports
- HDMI™
- VGA
- DisplayPort
- Keyboard/Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
Dimensions
- mATX Form Factor
- 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
Operating System
Support for Windows® 11 64-bit
Box content
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
