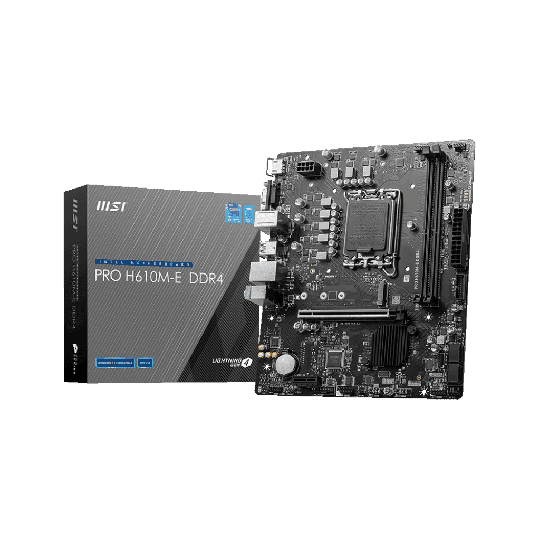

MSI PRO H610M-E DDR4 Motherboard
Fierce PC code
1005144
MPN
PRO H610M-E DDR4
- Socket: Intel LGA1700
- Chipset: H610
- Form Factor: mATX
- DIMM Slots: x2 DDR4
- M.2 Slots: x1
- On-board Wi-Fi: N/A
£55.95
Was
In stock
- 12TH GEN CORE READY - The PRO H610M-E DDR4 is a compact micro-ATX motherboard outfitted with the latest Intel H610 chipset (LGA 1700, 12th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & peformance
- GEN4 GPU SLOT, DUAL DIMMS - A PCIe 4.0 x16 slot (with steel frame) supports state-of-the-art graphics cards; Dual DIMM’s with dual-channel DDR4 architecture support up to 64 GB of SDRAM (3200MHz)
- GEN3 M.2 SSD STORAGE - The M.2 Gen3 x4 32Gb/s slot is designed to maximize NVMe based SSD performance; SSD storage reduces loading time
- PASSIVE & AI COOLING - A chipset heatsink provides passive cooling; a PCB base with thickened copper helps dissipate heat; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
- STAY CONNECTED - Features Realtek RTL8111H 1G LAN; Fixed ports include legacy VGA as well as the latest HDMI 1.4 ports (4K/30Hz) - requires CPU with integrated graphics; 4 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost
Processor
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
- Processor socket LGA1700
- Please go to www.msi.com to get the newest support status as new processors are released.
Chipset
Intel® H610 Chipset
Memory
- 2x DDR4 memory slots, support up to 64GB 1
- Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
- 1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot (From H610 chipset)
- Supports PCIe 3.0 x1
Onboard Graphics
- 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
- 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
SATA Ports
- 4x SATA 6Gb/s ports (From H610 chipset)
M.2 SSD Slot
- 1x M.2 slot (Key M) (from CPU)
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
Audio
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8111H 1Gbps LAN controller
Power Connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin +12V power connector
Internal USB Connectors
- 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
- 2x USB 2.0 Type-A connectors (From Hub-GL850G)
- Supports additional 4 USB 2.0 ports
Fan Connectors
- 1x 4-pin CPU fan connector
- 2x 4-pin system fan connectors
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Serial port connector
Jumpers
- 1x Clear CMOS jumper
LED Features
- 1x 4-pin RGB LED connector
- 4x EZ Debug LED
Back panel ports
- HDMI™
- VGA
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
Dimensions
- M-ATX Form Factor
- 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Box content
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
