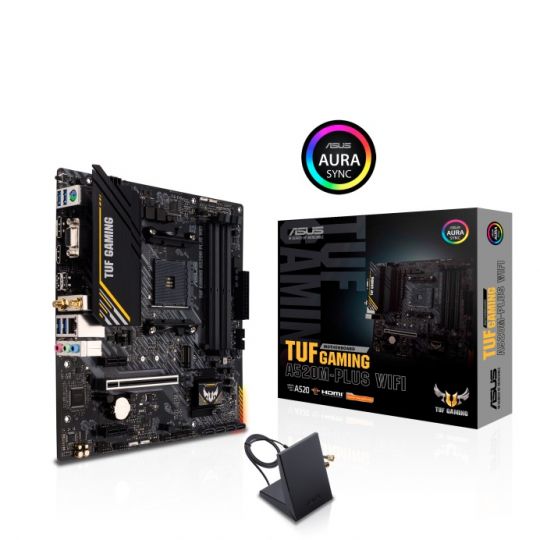

ASUS TUF GAMING A520M-PLUS WIFI Motherboard
Fierce PC code
1005739
MPN
90MB17F0-M0EAY0
- Socket: AMD AM4
- Chipset: A520M
- Form Factor: mATX
- DIMM Slots: x4 DDR4
- M.2 Slots: x1
- On-board Wi-Fi: Yes / Wi-Fi 5
£74.95
Was
In stock
Recommendations
TUF GAMING A520M-PLUS WIFI
TUF GAMING A520M-PLUS WIFI Micro-ATX AMD B550 Gaming Motherboard (Ryzen AM4) with M.2 support, 802.11ac, DisplayPort, HDMI, D-Sub, SATA 6Gbps, USB 3.2 Gen ports. 1, SATA 6Gbps and 2nd Gen Addressable Aura Connectors
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+
- Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology
- Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

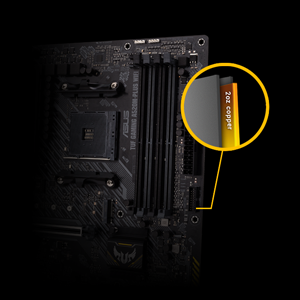

Stack Cool 3+
2-ounce copper layers draw heat away from critical components so they work at optimum operating temperature.

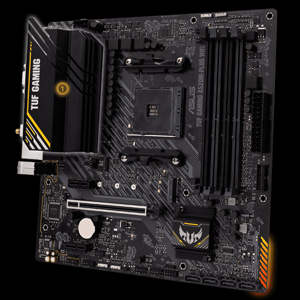

Cooler design
1.VRM DISIDER
Large surface heat sink covers VRM and shock areas.

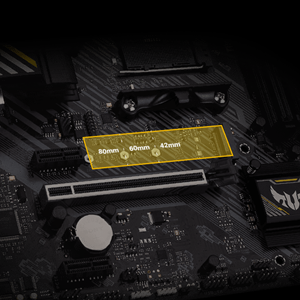

M.2 32Gbps
M.2 slot supports up to 22110 drives and maximum speeds of 32 Gbps via a x4 PCI Express 3.0 bandwidth, speeding up the boot-up of the S.O. and applications.
USB 3.2 Gen 1 x Type A
Numerous USB ports allow you to connect all kinds of gaming peripherals. Also includes USB 3.2 Gen 1 Type A connectors for compatible cases.

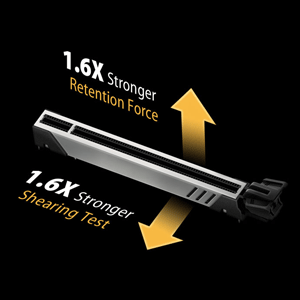

SafeSlot Core+
SafeSlot Core+ is ASUS PCIe slot design. It has a reinforced stainless steel design that attaches to the slot with special hooks. In addition, the whole set is firmly anchored to the printed circuit board with additional welding points that increase the safety of heavier graphics cards.

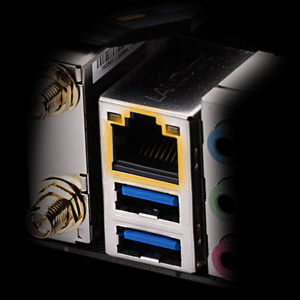

TUF LANGuard
TUF LANGuard is a military innovation which, thanks to the signal coupling and premium surface-mounted capacitors, increases the performance of the LAN connection and protects it against rays and static electricity.
BIOS Flashback
BIOS Flashback is the simplest and safest update method (UEFI) BIOS Place the (UEFI) BIOS file on a FAT32 USB flash drive, connect the USB stick to the BIOS Flashback USB port and press the button. You can even make updates without having installed the memory or CPU.
Networks

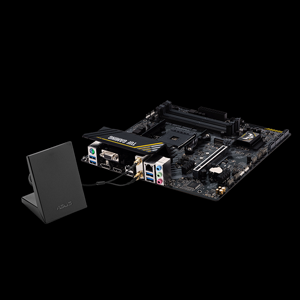

Wi-Fi 802.11ac The TUF GAMING A520M-PLUS WIFI incorporates 802.11ac 2.4 and 5GHz 1x1 Wi-Fi that delivers speeds up to 433.3Mbps* and ensures the best wireless and online connections.
* Actual speed varies and depends on network conditions.
Eclipse to rivals
A well-fitting system must be accompanied by an aesthetic that does it justice. ASUS Aura includes all RGB controls and a variety of lighting effects for the RGB LEDs built into the board and RGB strips. It can also be synchronized with Aura compatible products. Learn more from ASUS Aura Sync

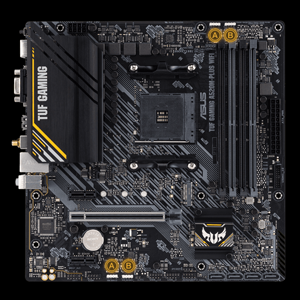

A. 2nd Gen Addressable RGB Connector
B. RGB Connector
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Supported processor sockets | Socket AM4 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 5 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |

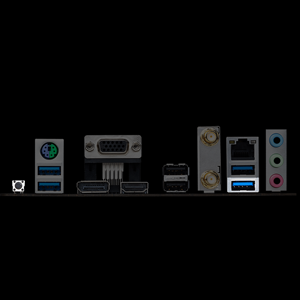

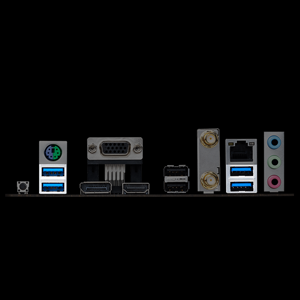

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 1.2 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| Features | |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Supported processor sockets | Socket AM4 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Height | 67 mm |
| Weight | 900 g |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Other features | |
| Height | 67 mm |
| Weight | 900 g |
