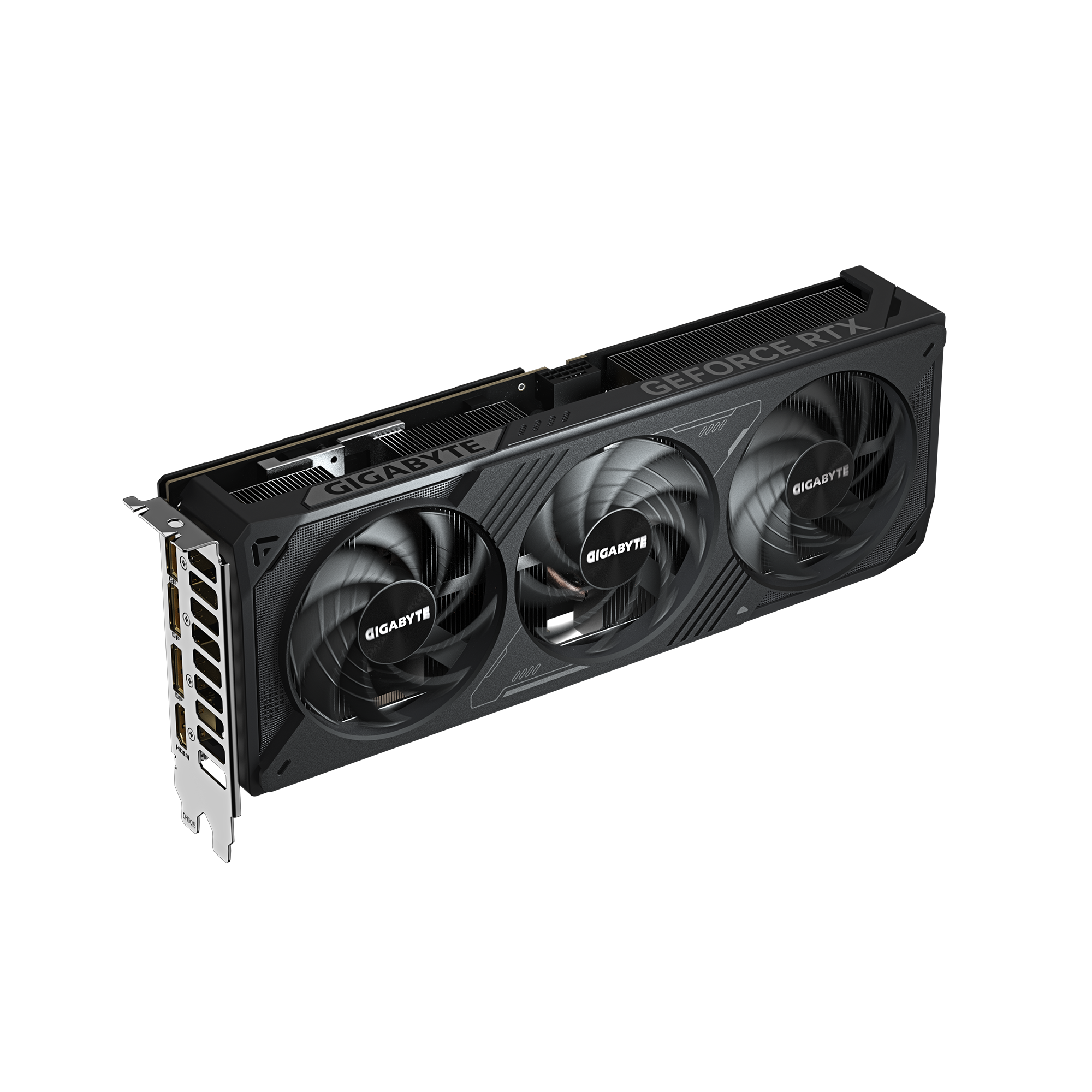

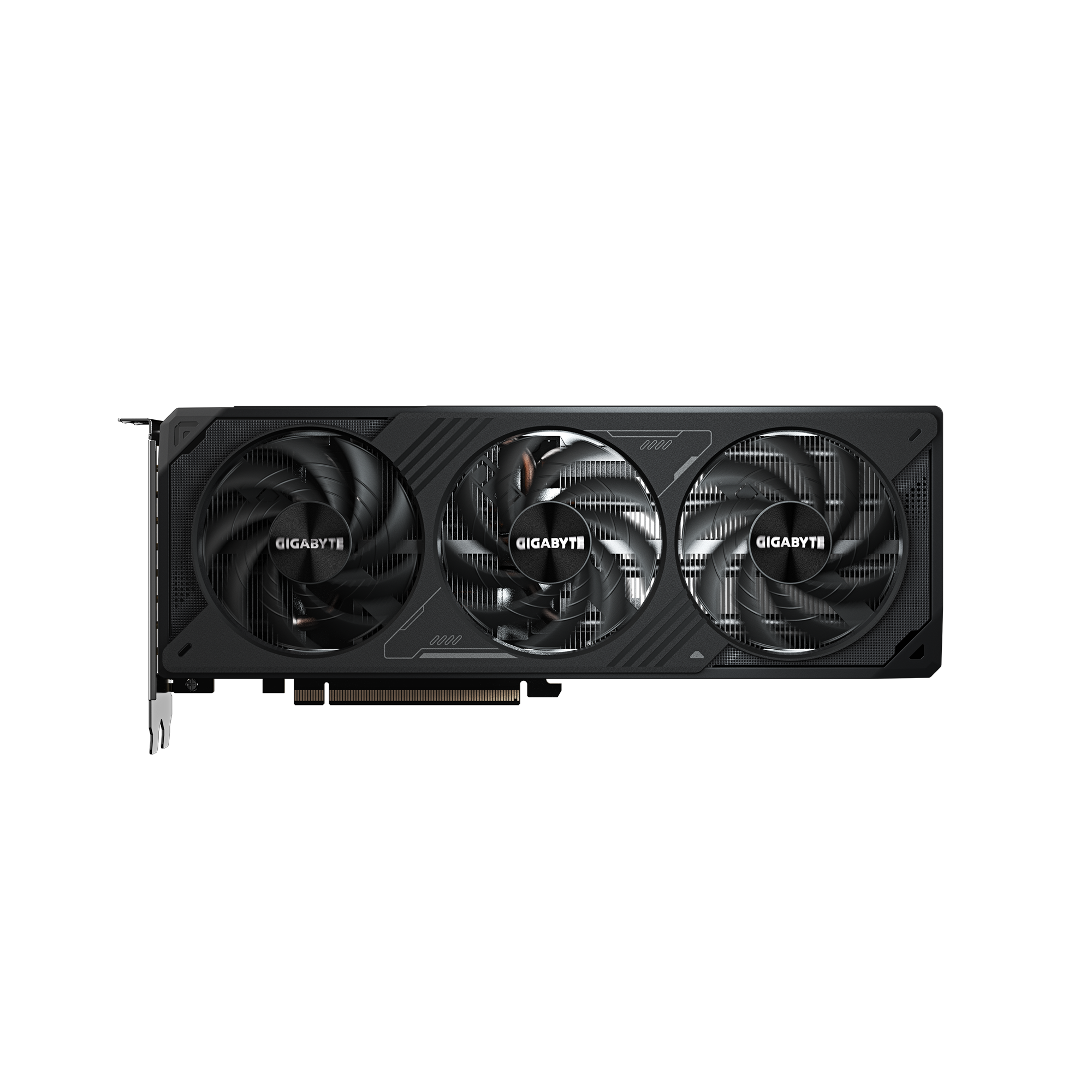

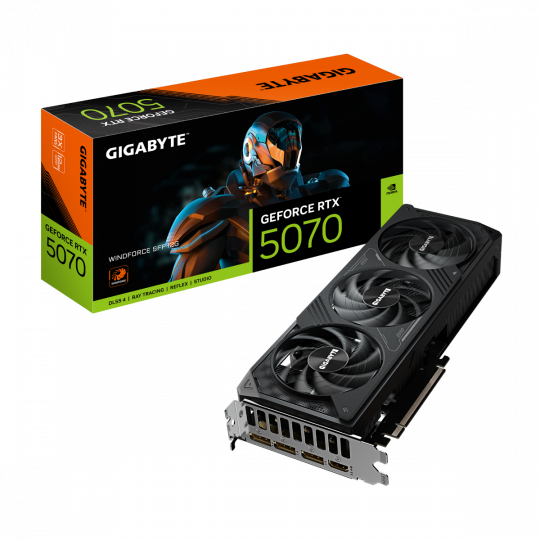

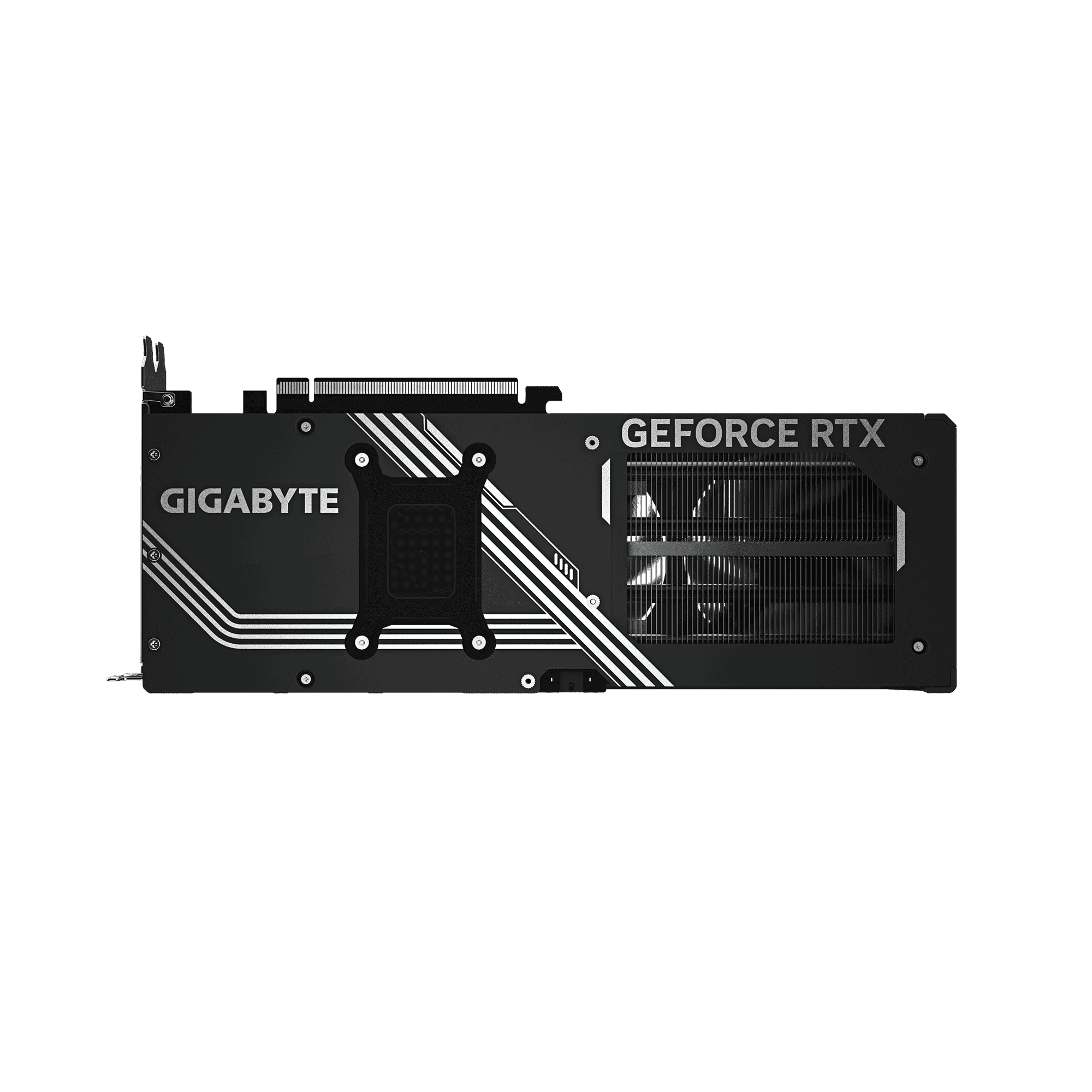

Gigabyte GeForce RTX 5070 Windforce SFF 12GB Graphics Card
Fierce PC code
1006076
MPN
GV-N5070WF3-12GD
- Graphics Co-processor: NVIDIA
- Brand: Gigabyte
- VRAM size: 12GB
- Graphics RAM Type: GDDR7
- CUDA® Cores: 6144
- GPU Boost Core Clock Speed: 2512 MHz
- Video Output Interface: 1x HDMI, 3x DisplayPort
£539.95
Was
In stock
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5070
- Integrated with 12GB GDDR7 192bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade thermal conductive gel
- NVIDIA SFF-ready
- Reinforced structure
CORE CLOCK
2512 MHz
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
3D ACTIVE FAN & ALTERNATE SPINNING
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Reduce the turbulence of adjacent fans and increase airflow pressure.
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor frequency | 2512 MHz |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA cores | 6144 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5070 |
| Memory | |
| Discrete graphics card memory | 12 GB |
| Memory clock speed | 28000 MHz |
| Memory bandwidth (max) | 28 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR7 |
| Ports & interfaces | |
| HDMI version | 2.1b |
| HDMI ports quantity | 1 |
| DisplayPort version | 2.1b |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Interface type | PCI Express x16 5.0 |
| Video | |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDMI version | 2.1b |
| Dual Link DVI | No |
| CUDA cores | 6144 |
| Performance | |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
| Design | |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| Number of slots | 2.5 |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| SFF ready | Yes |
| Power | |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 750 W |
| Weight & dimensions | |
| Number of slots | 2.5 |
| Weight | 830 g |
| Height | 110 mm |
| Depth | 50 mm |
| Length | 282 mm |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
| System requirements | |
| Minimum system power supply | 750 W |
| Packaging data | |
| Package type | Box |
| Package width | 182.5 mm |
| Package height | 75 mm |
| Package depth | 354 mm |
| Package weight | 1.38 kg |
| Packaging content | |
| Power cord included | Yes |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
RTX. It's On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
NVIDIA DLSS 4
Supreme Speed.
Superior Visuals.
Powered by AI.
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.
Full Ray Tracing with Neural Rendering
Game-Changing Realism
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.
NVIDIA Reflex 2
Compete at Warp Speed
Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.
RTX AI PCs
NVIDIA Powers the World's AI. And Yours.
Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
Creators
Your Creative AI-dvantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Additional Features and Benefits
Game Ready and Studio Drivers
GeForce Game Ready and Studio Drivers deliver the best experience for your favorite games. They’re finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.
NVIDIA App
The essential companion for PC gamers and creators. Keep your PC up to date with the latest NVIDIA drivers and technology. Optimize games and applications with a new unified GPU control center, and discover the latest NVIDIA apps.
NVIDIA G-SYNC
NVIDIA G-SYNC® is a suite of the ultimate display technologies. They offer enhanced motion clarity, smooth tear-free immersion, ultra-high frame rates, and more.
Virtual Reality
The highest-performance graphics deliver the smoothest, most immersive VR experiences.
