Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC 16GB Graphics Card
Fierce PC code
1006925
MPN
GV-N506TWF2MAX OC-16GD
- Graphics Co-Processor: NVIDIA
- Brand: Gigabyte
- VRAM size: 16GB
- Graphics RAM Type: GDDR7
- CUDA® Cores: 4608
- GPU Boost Core Clock Speed: 2587 MHz
- Video Output Interface: 1x HDMI, 3x DisplayPort
£539.95
Was
In stock
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5060 Ti
- Integrated with 16GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Reinforced structure
CORE CLOCK
2587 MHz (Reference card :2572 MHz)

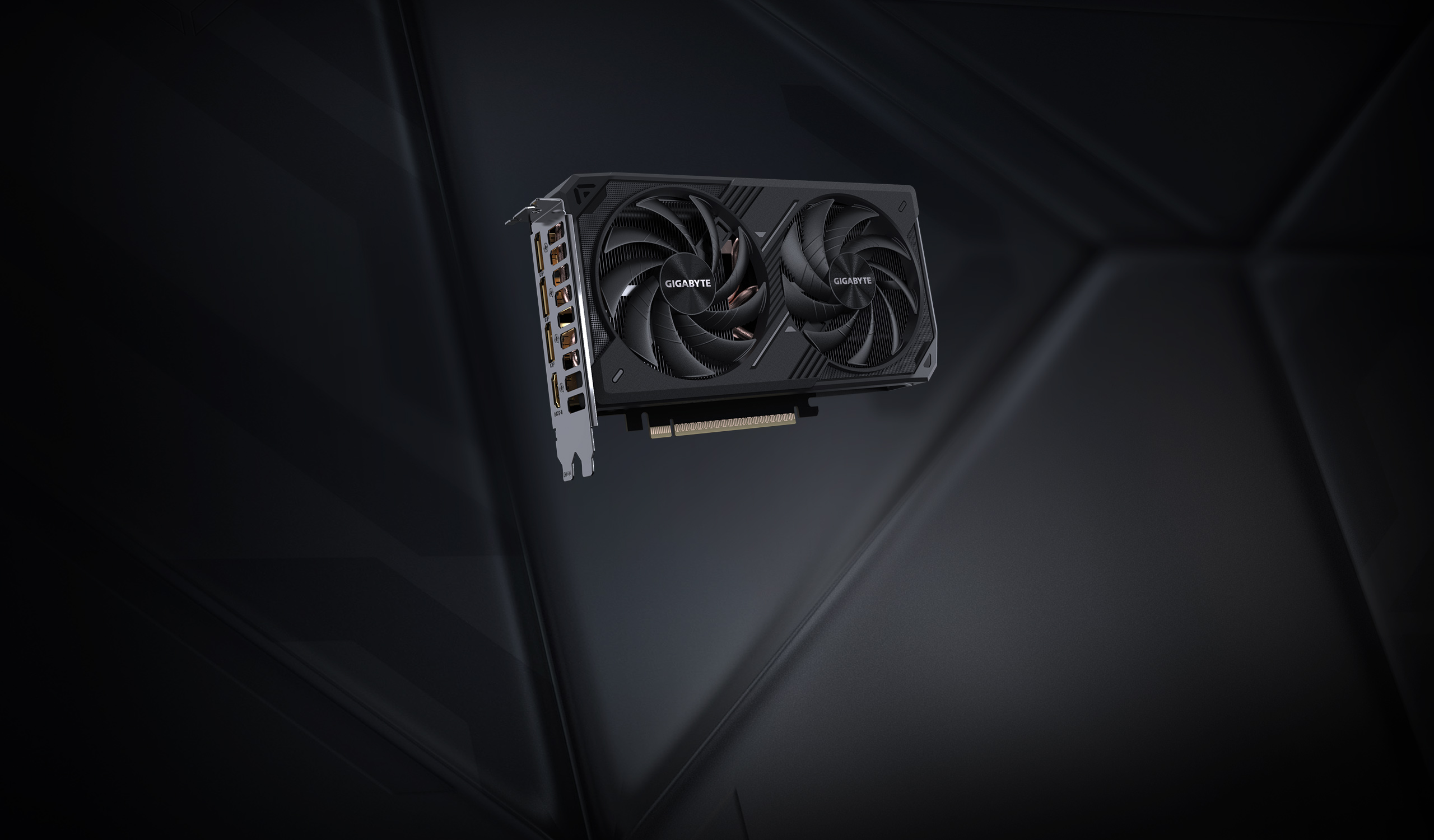

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
GeForce RTX 50 Series

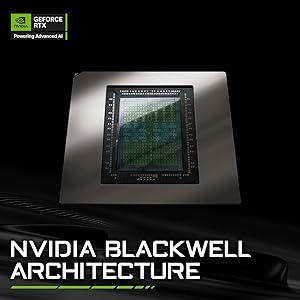

The NVIDIA GeForce RTX 50 Series revolutionizes gaming and creation with the Blackwell architecture. Featuring fifth-gen Tensor Cores for FP4 and DLSS 4, fourth-gen Ray Tracing Cores for Mega Geometry, and optimized streaming multiprocessors, it delivers unprecedented AI performance, realistic ray tracing, and efficiency. Perfect for immersive gaming and advanced creative workflows.

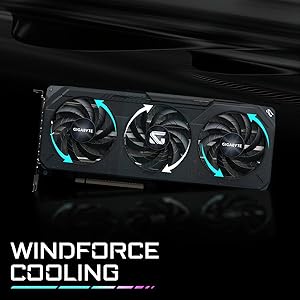

WINDFORCE Cooling
Gigabyte’s Windforce cooling combines a server-grade thermal conductive gel, a copper plate directly contacting the GPU, and composite copper heat pipes. Together, they optimize heat transfer from critical components, enabling stable performance under load with lower operating temperatures and quieter fan behavior.

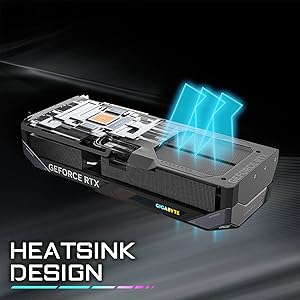

Heatsink Design
The heatsink features a densely finned structure designed for maximum surface area, coupled with well-placed copper heat pipes and a copper base plate. Its layout ensures rapid dissipation of heat from the GPU and memory modules, helping maintain performance while preventing thermal throttling.

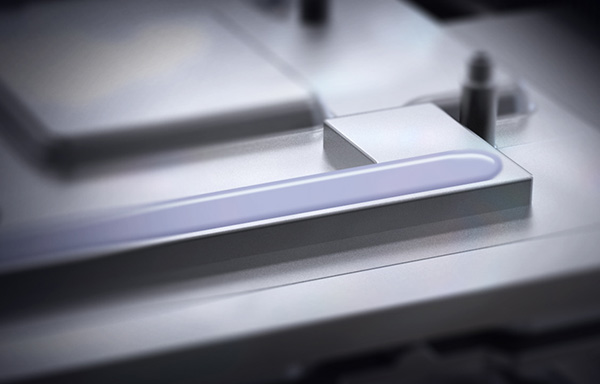

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

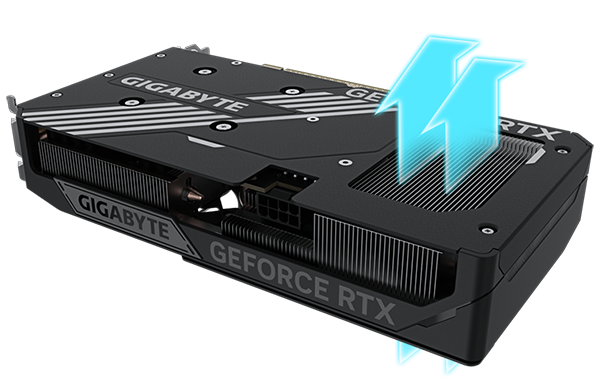

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor frequency | 2587 MHz |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA cores | 4608 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5060 Ti |
| Memory | |
| Discrete graphics card memory | 16 GB |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR7 |
| Ports & interfaces | |
| HDMI version | 2.1b |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPort version | 2.1b |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Interface type | PCI Express 5.0 |
| Thunderbolt 3 ports quantity | 0 |
| Video | |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDMI version | 2.1b |
| Dual Link DVI | No |
| CUDA cores | 4608 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
| Overclocked (OC) edition | Yes |
| Design | |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Product colour | Black |
| Number of slots | 2 |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Power | |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 650 W |
| Thermal Design Power (TDP) | 135 W |
| Weight & dimensions | |
| Number of slots | 2 |
| Weight | 580 g |
| Height | 120 mm |
| Depth | 40 mm |
| Length | 208 mm |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Product colour | Black |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
| System requirements | |
| Minimum system power supply | 650 W |
| Packaging data | |
| Package type | Box |
| Package width | 210.5 mm |
| Package height | 50 mm |
| Package depth | 295 mm |
| Package weight | 850 g |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
