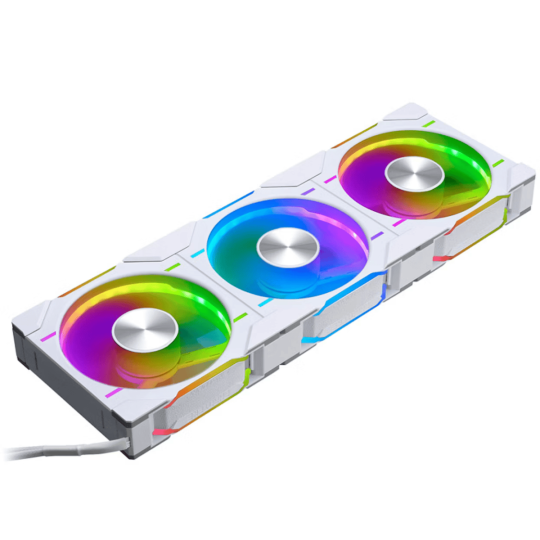

Phanteks D30 Reverse Airflow 120mm DRGB PWM Fan Triple Pack - White

Fierce PC code

1004568

MPN

PH-F120D30RDRGBPWMWT01_3P

Brand: Phanteks
Fan Diameter: 120mm
Connectors: 4-pin PWM, 3-pin JST
Fan Speed: 2000 RPM
Fan Bearing: Fluid Dynamic Bearing
Fan Blade Direction: Reversed

Quantity

Only 3 left!

Next Day Delivery

Order before 2PM

D30-120

Premium D-RGB performance fan

The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.

The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.

Regular & Reverse Models

D30 REGULAR
Air moves from front to rear.

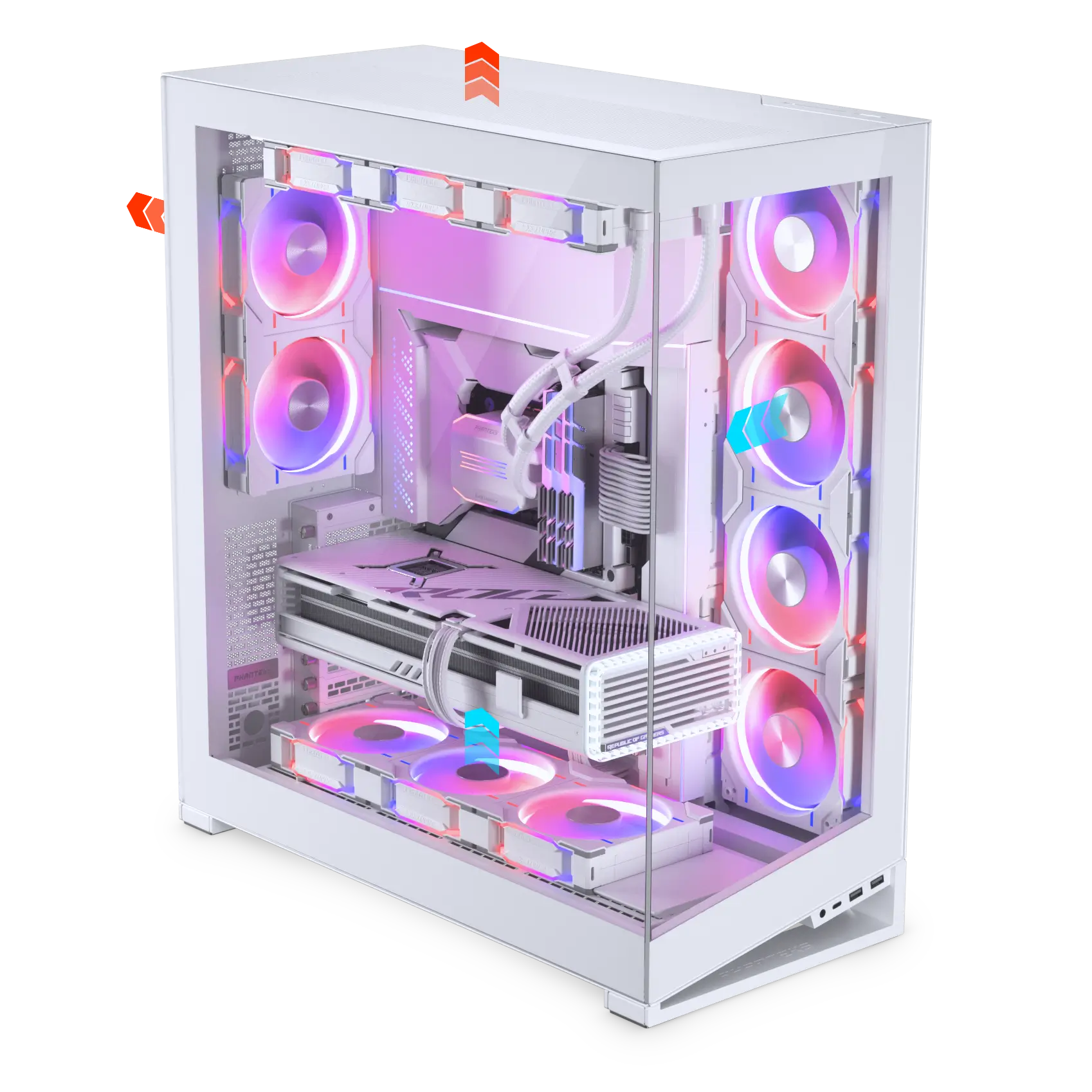

D30 REVERSED
Air moves from rear to front.

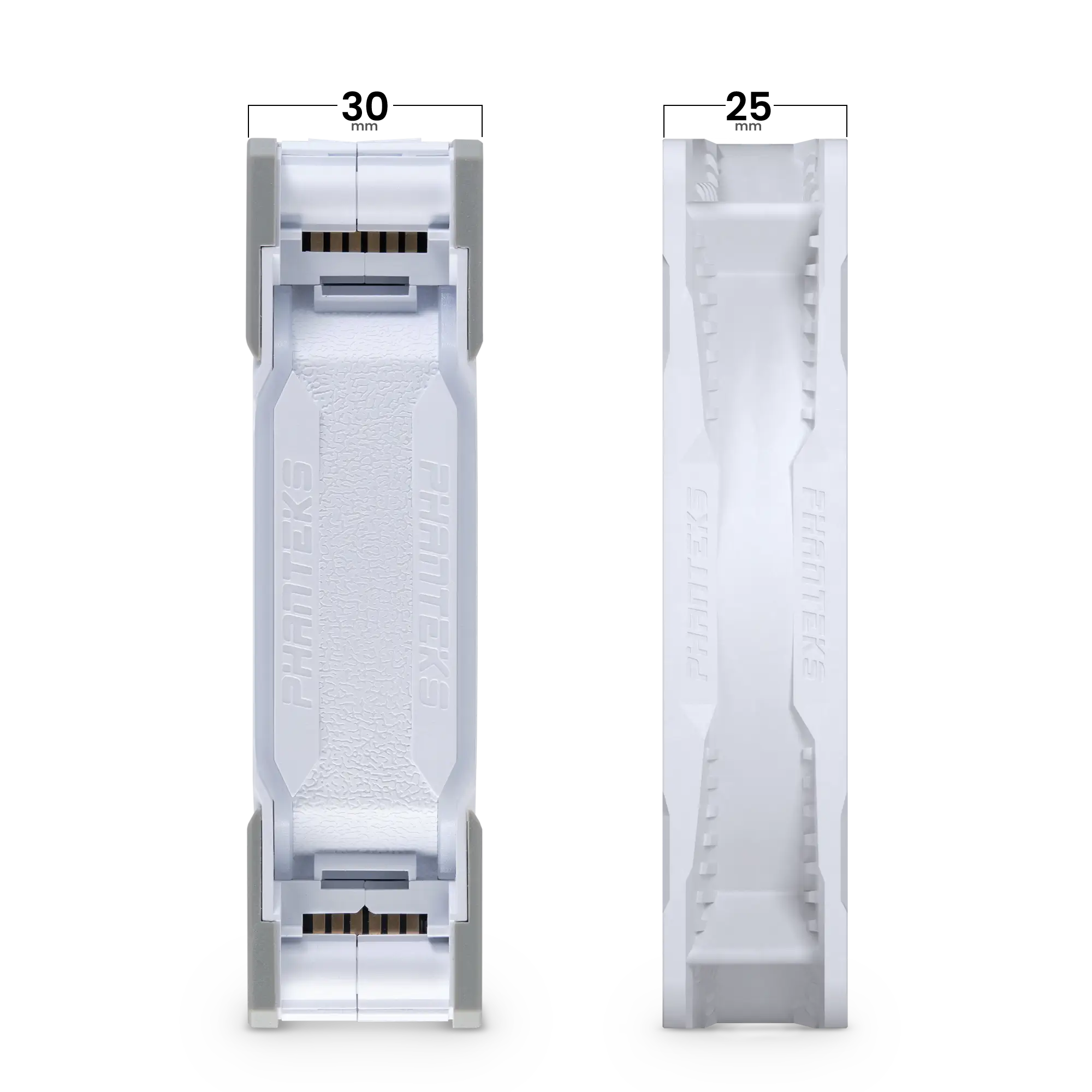

Clean look in both positions

Clean look with regular and reversed models combined.
Hub spokes blocked view with only regular models.

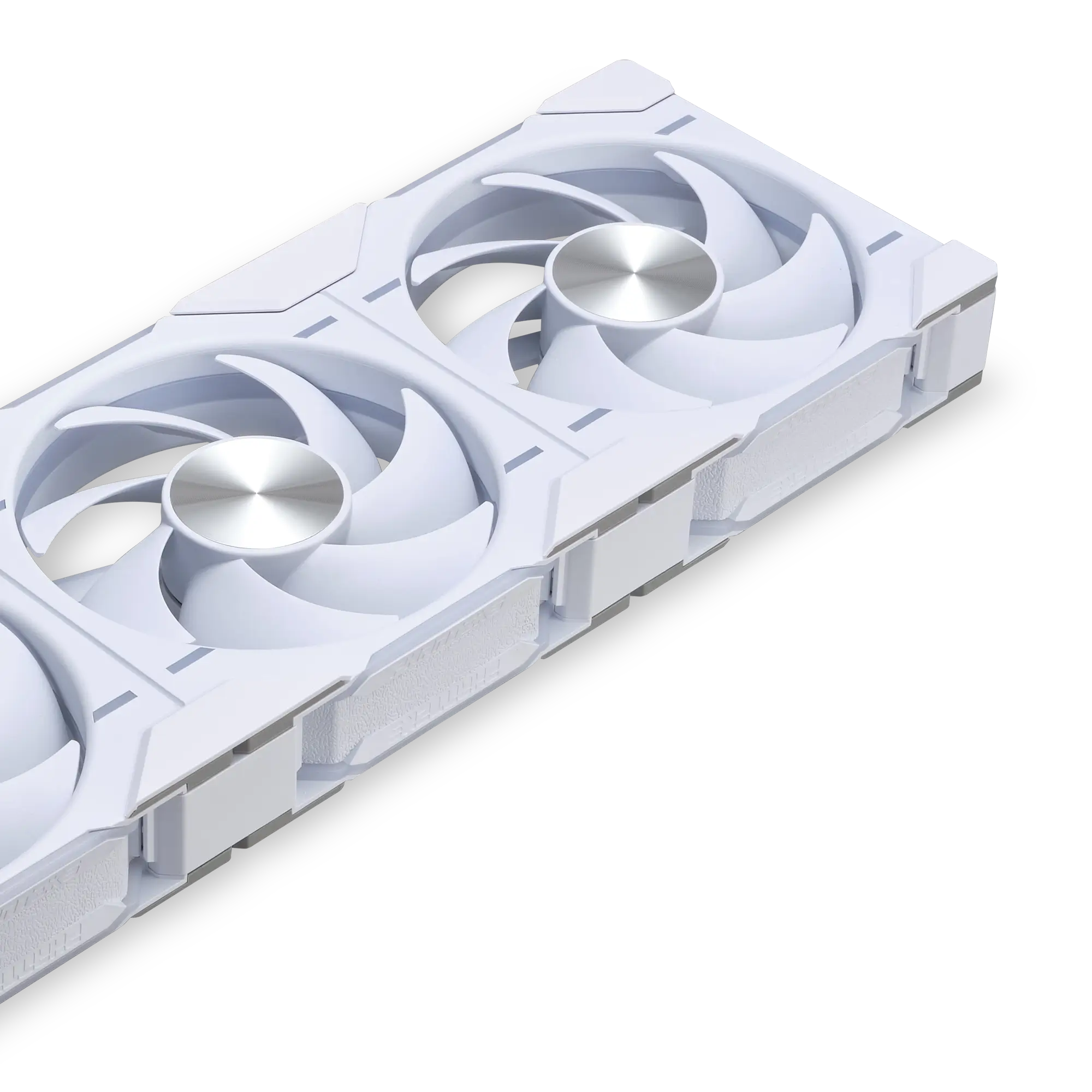

Link Together as One

Connect up to four D30 fans together with the bridge connectors.
Hide the fan screws with the screw covers for a super-clean look.
Standard PWM fan header to control directly from the motherboard.

30 mm of Performance

Increased thickness improves noise-normalized performance.
Designed to excel on radiators and mesh / dust filters.

D-RGB All the Way

The integrated D-RGB lighting is visible from all sides of the D30 frame.
The blades reflect the light coming from the HALOS lighting ring for a smooth lighting effect.
Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.

Performance
Suitable location	Computer case
Fan connector	4-pin
Rotational speed (min)	250 RPM
Rotational speed (max)	2000 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Noise level (high speed)	31.8 dB
Fan thickness	3 cm
Type	Fan
Fan diameter	12 cm
Maximum airflow	61.5 cfm
Maximum air pressure	2.72 mmH2O
Number of fans	1 fan(s)
Mean time between failures (MTBF)	50000 h
Quantity per pack	3 pc(s)
Number of fan blades	7
Fan 2 rotational speed (min)	250 RPM
Fan 2 rotational speed (max)	2000 RPM
Fan 2 noise level (high speed)	31.8 dB
Fan 2 maximum airflow	61.5 cfm
Fan 2 maximum air pressure	2.72 mmH2O
Fan noise level (max)	31.8 dB
Fan static pressure	2.72 mmH2O
Fan speed (min)	250 RPM
Fan speed (max)	2000 RPM
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Product colour	White
Cable length	0.7 m
Illumination LED	Yes
Number of LEDs	30
Number of fan blades	7
Technical details
Noise level (high speed)	31.8 dB
Fan thickness	3 cm
Type	Fan
Fan diameter	12 cm
Maximum airflow	61.5 cfm
Maximum air pressure	2.72 mmH2O
Number of fans	1 fan(s)
Cable length	0.7 m
Fan connector	4-pin
Illumination LED	Yes
Warranty period	3 year(s)
Ports & interfaces
Fan connector	4-pin
Power
Voltage	5 - 13.2 V
Power consumption (typical)	1.8 W
Maximum current	0.45 A
LED voltage	5 V
Fan power consumption	1.8 W
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 30 mm
Fan weight	300 g
Fan thickness	3 cm
Width	120 mm
Package weight	990 g
Depth	30 mm
Height	120 mm
Cable length	0.7 m
Fan 2 weight	300 g
Fan 2 dimensions (W x D x H)	120 x 120 x 30 mm
Endurance
Mean time between failures (MTBF)	50000 h
Packaging data
Package weight	990 g
Package type	Box
Packaging content
Cables included	4-pin
Package type	Box
Other features
LED voltage	5 V
